A new standard for affordable laser alignment
The new ShaftAlign Touch is a rugged laser alignment system that provides digital, cloud, and other advancements over the decades-old but still widely used dial indicator and feeler gauge.
ShaftAlign Touch is a combination of software and hardware innovations enabling maintenance teams to address a wide variety of alignment challenges that basic laser alignment systems cannot handle.
It also delivers premium Adaptive Alignment capabilities that, until now, were not available in an entry-level system.
Two innovations – single-laser technology and Active Situational Intelligence – differentiate ShaftAlign Touch from the competition.
Together, they deliver the “magic” that enables Prüftechnik alignment products to automatically adapt – in real time, as alignment jobs are finished – to the asset, the situation, and the user’s experience level.
Step up to the high precision and intelligence built into the ShaftAlign Touch: eliminate the time, rework, and guessing common to other approaches. Get more done while enabling your machines to operate at peak performance.
Technology
ShaftAlign Touch uses single-laser technology and Active Situational Intelligence to adapt to the asset, the situation, and the maintenance team, aligning standard rotating assets with new levels of precision and speed.
Watch our videos with SHAFTALIGN Touch
Introducing the new ShaftAlign Touch

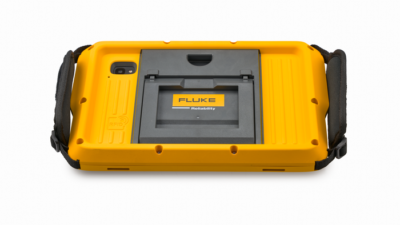

ShaftAlign Touch: The rugged, go-to shaft alignment system

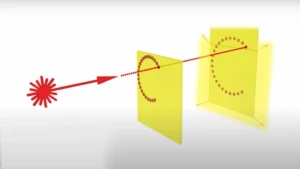

Single Laser Technology

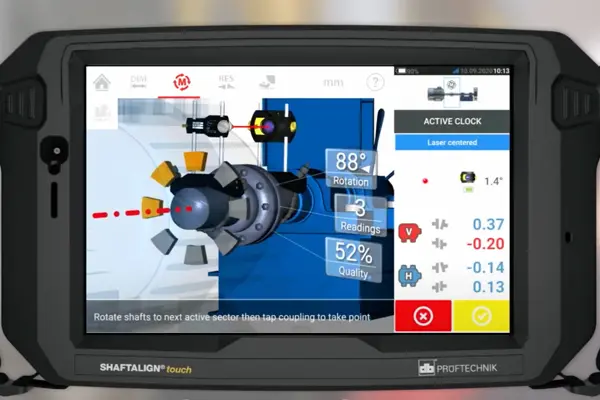

ShaftAlign Touch: a user-interface designed for YOU
The rugged ShaftAlign Touch: gets the job done, just like you.
The Magic of Adaptive Alignment
ShaftAlign Touch - aligning shafts has never been easier
Download more information for free
How to save costs with precision shaft alignment - English
Case Study
Precision shaft alignment brings energy costs down - English
Case Study
PRUFTECHNIK Alignment | Alignment and geometric measurement - English

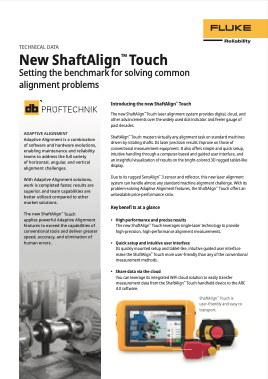

Brochure
What’s new?
touch device Firmware Version 2.5
- ANSI tolerances available for Short flex and Spacer coupling types
- Resolution available in both 2DP and 3DP (Metric)
- Report print preview
- Report new section: Measurement equipment serial number and due calibration date
- Tolerance screen accessible directly from Results view
- Context sensitive help ‘?’ button directly accessible within main workflow screens
- “Add feet” button available in stationary machine properties
Please note: touch device firmware version 2.5 strictly requires ARC 4.0 software version 2.5 to communicate.
How to upgrade your firmware?
touch device – ALI 50.200 upgrade procedure
- Please ensure the touch device is charged or has at least 50% battery capacity.
- Unzip file to empty PRUFTECHNIK USB memory stick. Firmware is stored in “touch” folder.
- Switch on the touch device. Wait for Home screen to appear.
- Connect USB memory stick to the touch device USB port. New firmware copied from USB memory stick to the touch device.
- After approximately 1 minute on-screen message box appears stating new upgrade firmware found. Tap green tick button to start upgrade. Remove USB memory stick from the touch device.
- The touch device restarts and firmware upgrade begins.
- After completion of firmware upgrade the touch device restarts and finishes in Home screen.
